Tw22 Double Sided Retractable Pergola System

The TW22 double sided retractable pergola system rafters provide an elegant solution for any project. Each of
the custom designs are installed according to site specifications and can easily be adapted as required. This
model provides an outdoor covering system with an architectural edge to allow outdoor areas to be used in all
weather conditions. The system offers a wind rating up to Beaufort class 11 (up to 117km/h) and are designed
to stand up to even the worst of conditions rain, hail or shine.


The site specific models are manufactured to size using high grade 6063 extruded aluminium profiles finished with thermosetting powder coating which provides superior overall performance for exterior product applications. All bolts, screws and pins are high grade stainless steel to ensure extended system life.

The TW22 rafter profiles (LT: 3.14" x 4.92" / XL: 4.33" x 6.29") have been designed with unique water guard side channels and cast aluminum end plates to allow for projections up to LT: 14m / XL: 20m per system. Widths are customized according to site requirements and available in any size up to 13m. The TW22 system offers up to LT: 1959 sq ft / XL: 2798 sq ft of protection at the touch of a button but when required linking multiple systems is also possible and made easy by our patented storm channel joining system that ensures 100% waterproof join every time. The TW22 system also includes an integrated gutter system with internal drainage to carry away even the heaviest rain.


Remote controlled motorisation is provided by utilising European technology through a custom built direct

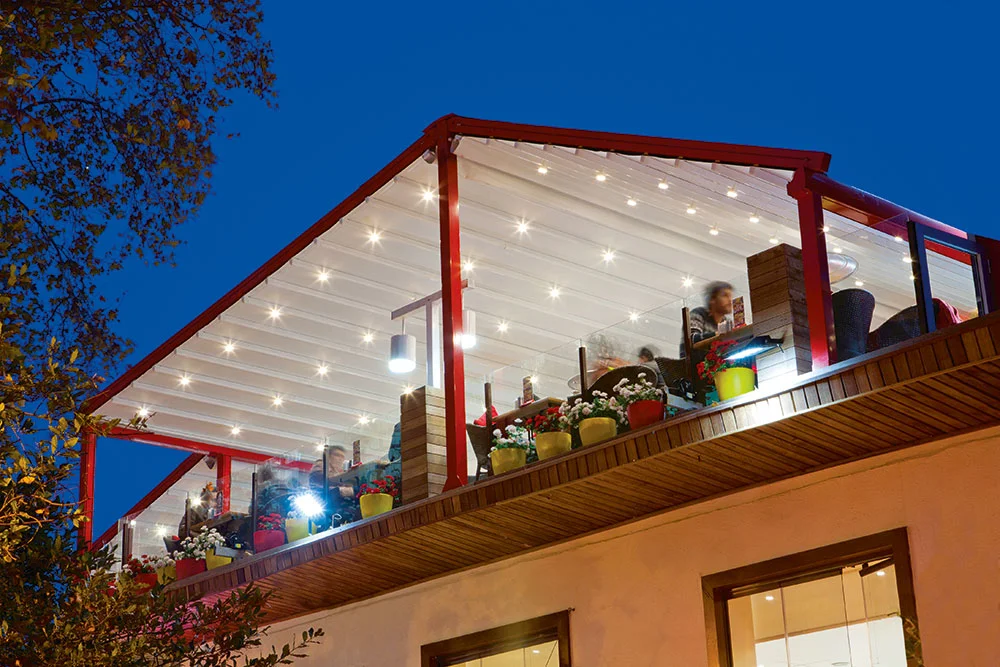

drive motor system to ensure smooth and quick operation at 26RPM. The optional hi powered LED-TEC
lighting system provides a practical touch of class and when coupled with a remote dimming controller allows
the user to change the mood to suit the surrounding environment.

The heart of the system is driven by the Suntech F3 eight wheel slider carriages (each F3 slider carriage has
a load limit of 1322 lbs) that incorporates a triple layer barrier system and works in conjunction with a timing
belt that has been reinforced with multiple internal stainless steel cables to provide a pulling strength of over
2129 lbs. It’s this tension that is applied to the fabric membrane to allow an angle of 6 degrees fall possible and
ensure all water drains away in the internal gutter system.

TW 22 1.JPG

The fire rated and 100% waterproof architectural membrane is available in a range of colors in both opaque
and transparent that provides maximum stability and resistance to temperature, moisture and dirt. It does not
shrink or bag, and the acrylic top coating makes it very easy to clean for years to come. When not in use the
fabric is neatly retracted under the systems hood to provide protection from the elements when not required.


To ensure the highest level of protection Suntech systems focus on all the details, this is why all Suntech
systems come standard finished with Stormguard soft touch edge seal on all parameters. Stormguard
provides the ultimate protection against rain and draught intrusion around the outside of the system and is
only available on our systems. Stormguards soft touch edge seal is produced from an extra soft & flexible
Natural rubber to ensure the best possible protection from the elements.
